Intel 320 Series 300 GB SATA 3.0 Gb-s 2.5-Inch Solid-State Drive

What is an SSD, and Why Is It Important?

Processor
The "brains" of the PC that performs key operations

Memory
Provides temporary storage for instructions and data

SSD
Provides ultra-fast storage for applications and data

Graphics Card
Processes graphical information and provides connectivity to displays

Optical Drive
Allows the PC to read data stored on optical discs like CD, DVD, and Blu-Ray*

Motherboard
The foundation of the PC, usually that connects key components together

The Intel 320 Series Solid-State Drive (300 GB) provides an advanced alternative to traditional hard drives with increased speeds, low power consumption, and high reliability. Designed without moving parts, the drive provides quiet and cool operation, while flash memory technology offers faster boot-up, application launch, and file loading. And with the convenience of Intel's migration software and toolbox, it's easy to set up and maintain your SSD.

Intel 320 Series Solid-State Drive (300 GB)
At a Glance:

Flash technology for increased processing speeds and multitasking
Built-in features protect data from internal and external threats
Intel utilities make installation easy and optimize performance
No moving parts for higher reliability and longer life span
Backed by a five-year limited warranty

Intel 320 Series Solid-State Drive (300 GB) Product Shot

Intel's 320 Series SSD offers outstanding speed and performance while remaining cool and quiet. View larger.

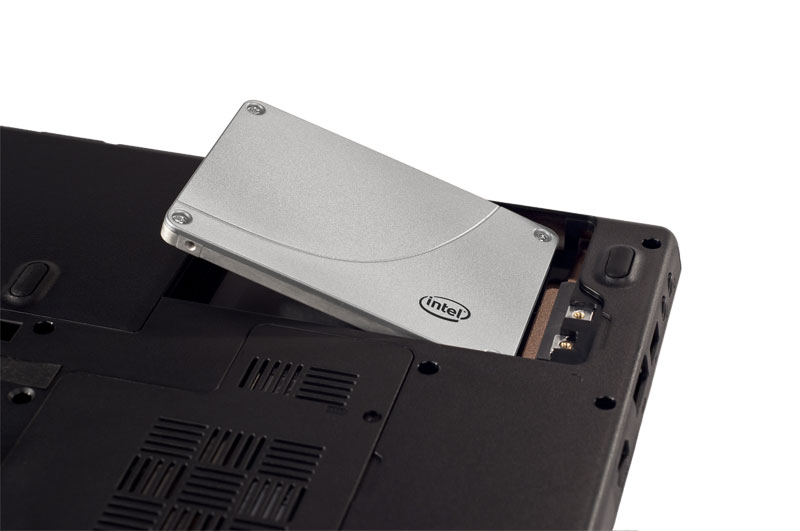

The standard 2.5-inch form factor makes it easy to install on nearly any laptop. View larger.

Flash Technology Easily Handles Multiple Operations
With Intel's flash technology, the 320 Series Solid-State Drive (SSD) features a flash system that can easily handle up to 32 concurrent operations at once. Even with the most demanding applications, the drive remains cool and quiet.

Built-In Data Protection Adds Security
A variety of data protection features protect your information from internal and external threats, so you can use this 320 Series drive with confidence. Encryption technology secures your personal data in the event of theft or loss. In case of an unexpected power loss, all data is written from the cache to the drive, protecting your data.

Tool Suite for Easy Setup and Troubleshooting
The 320 Series Solid-State Drive includes free Intel utilities that help you install and manage your hard drive. If you install the SSD in an existing PC system, Intel's Data Migration Software quickly replicates the operating system and all files from the PC hard drive, so you can begin using the drive immediately.

Intel's SSD Toolbox features a wide range of tools that help you optimize the performance of your 320 Series drive. With this toolbox, you can securely erase your SSD or configure your system to take full advantage of available features.

Low Power Consumption Increases Mobility
The low power needs of the 320 Series SSD translate to a longer battery life and a lighter notebook, which means you can increase the capacity and speed of your laptop without the added weight of a larger battery.

Rugged, Reliable Design
With no moving parts and the ability to withstand bumps and shocks without losing precious data, the 320 Series drive offers increased speed and performance without sacrificing reliability.

Warranty Information
The Intel 320 Series Solid-State Drive (300 GB) is backed by a manufacturer's five-year limited warranty.

Included with this Product
Intel 320 Series Solid-State Drive (300 GB) and installation kit.

Intel 320 Series Solid State Drives
	40 GB SATA Solid-State Drive - SSD (Retail box)	80 GB SATA Solid-State Drive - SSD (Retail box)	120 GB SATA Solid-State Drive - SSD (Retail box)	160 GB SATA Solid-State Drive - SSD (Retail box)	300 GB SATA Solid-State Drive - SSD (Retail box)	600 GB SATA Solid-State Drive - SSD (Retail box)
Storage Capacity (GB)	40	80	120	160	300	600
NAND Flash Components	25nm Intel NAND Flash Memory Multi-Level Cell	25nm Intel NAND Flash Memory Multi-Level Cell	25nm Intel NAND Flash Memory Multi-Level Cell	25nm Intel NAND Flash Memory Multi-Level Cell	25nm Intel NAND Flash Memory Multi-Level Cell	25nm Intel NAND Flash Memory Multi-Level Cell
Bandwidth (Sustained Sequential Read/Write)	Up to 200 MB/s Up to 45 MB/s	Up to 270 MB/s Up to 90 MB/s	Up to 270 MB/s Up to 130 MB/s	Up to 270 MB/s Up to 165 MB/s	Up to 270 MB/s Up to 205 MB/s	Up to 270 MB/s Up to 220 MB/s
Read Latency	75 microseconds	75 microseconds	75 microseconds	75 microseconds	75 microseconds	75 microseconds
Write Latency	90 microseconds	90 microseconds	90 microseconds	90 microseconds	90 microseconds	90 microseconds
Random I/O Operations per Second (IOPS) (Random 4KB Read/Write)	Up to 30,000 IOPS / Up to 3,700 IOPS	Up to 38,000 IOPS / Up to 10,000 IOPS	Up to 38,000 IOPS / Up to 14,000 IOPS	Up to 39,000 IOPS / Up to 21,000 IOPS	Up to 39,500 IOPS / Up to 23,000 IOPS	Up to 39,500 IOPS / Up to 23,000 IOPS
Interface	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s	SATA 3 Gb/s, compatible with SATA 1.5 Gb/s
Form Factor	2.5-inch	2.5-inch	2.5-inch	2.5-inch	2.5-inch	2.5-inch
Life Expectancy (Mean Time Between Failure)	1.2 Million Hours	1.2 Million Hours	1.2 Million Hours	1.2 Million Hours	1.2 Million Hours	1.2 Million Hours
Power Consumption	Active: 150 mW Typical Idle: 100 mW Typical	Active: 150 mW Typical Idle: 100 mW Typical	Active: 150 mW Typical Idle: 100 mW Typical	Active: 150 mW Typical Idle: 100 mW Typical	Active: 150 mW Typical Idle: 100 mW Typical	Active: 150 mW Typical Idle: 100 mW Typical

Owner Reviews, Ratings, Comments and Criticism
This is my first SSD, and I absolutely love it. Very fast boot up and shut-down; incredibly fast program launch - even monsters like Photoshop: blam - they're on. Since my system worked reasonably well before, I worried about every aspect of this project. (If it ain't broke, don't fix it. Why spend the $250, what if I have boot problems, what if the performance increase is marginal or worse?). Incredibly the installation was totally quick and flawless. Bravo, Intel! Now for some details. I bought the retail kit ($10 to $25 more than the OEM version). The two cables are handy (sata power and data), I used the bracket, and even the tiny 3 inch CD with installation instructions was useful. Amazingly, those instructions are not on Intel's website.) They worked flawlessly. I installed it in my 2008 Intel desktop tower that runs Windows XP Pro 32-bit and that has an Intel Core 2 Duo E8600 processor. This system was top of the line when I bought it, so I really wanted to wait another year before upgrading to a 64-bit OS (to get
